Author Topic: Sticky: Extend headlight life by pulling the DRL2 fuse  (Read 24087 times, 63 Replies)
0 Members and 1 Guest are viewing this topic.
FORUM GM
FORMER ACADIA COMMANDER; NOW IMPALA HERDER
Global Moderator
Acadia NIRVANA
*****
Offline Offline

Gender: Male
Posts: 15343
Joined: Dec 2008


I'M AN ACCOUNT TAKER AND A THREAD BREAKER



« Reply #40 on: April 10, 2012, 07:39:46 AM »

I changed one myself for only the cost of the bulb and no bumper removal.  Heck I think it would take longer to remove the bumper, change out the bulb and reinstall the bumper than it would to just work through the wheel well  wink
Logged

2014 Impala LS (non-eco)-Build date 12/13/2013  Mine 3/15/2014
"I don't care what you think about me; I don't think about you at all"
Nvr2loud
Acadia Guru
*******
Offline Offline

Gender: Male
Posts: 3608
Location: Huntsville, Ontario, Canada
Joined: Aug 2007




Ignore
« Reply #41 on: April 10, 2012, 08:44:20 AM »

My dealer went through the wheel well to do one bulb on the 2010. When the second bulb went, just out of warranty, they claimed that they needed to remove the bumper for access.... I had my independent change it instead and he went through the wheel well!
Logged

2008 SLE AWD 8psg Medium Brown Metallic RIP
2010 SLE2 AWD 8psg Summit White / Sunroof / tow pkg Traded-IN
2012 SLE2 AWD 8psg QuickSilver / Sunroof / tow pkg / heated seats / DVD entertainment system
2011 Sierra SLT Crew Cab / 5.3 V8 / 4x4 / Sunroof
2011 Polaris Ranger 500 Crew
2004 Trailcruiser
scottofoz
New Member
*
Offline Offline

Gender: Male
Posts: 37
Location: League City, TX - South of Houston
Joined: Jul 2010





Ignore
« Reply #42 on: November 21, 2012, 04:49:10 PM »

Bought our 2007 used in December 2009.  in June '10, we noticed the driver's side DRL was out.  Dealer replaced it at no charge (under warranty, or so the paperwork said).  In Aug '12, passenger bulb went out.  Different dealer replaced bulb and melted socket.  Charged me $95.92  thumbdown  Oct '12 and noticed driver's side DRL was out (again) Bang Head.  Searched the forum, saw this thread, removed the DRL2 fuse (awkward, but got in there!).  Will drive without DRLs from now on.  I know of no one who's been ticketed for not having their DRLs on.
Logged

2007 SLT-2 White / 35K - Dec 2009, 49.4K - Nov. 2012 / FWD / caps chairs / dvd / tow package / 19" wheels - New Bridgestone Dueler H/L Alenza's on Sept 2010 / BlueStar installed June 2011 / 2nd owner with 5 year extended warranty
Eric E
Jr. Member
**
Offline Offline

Gender: Male
Posts: 62
Location: St. Louis, MO
Joined: Jan 2012




Ignore
« Reply #43 on: December 31, 2012, 09:28:50 AM »

I've been considering just rerouting the DRL wire down to the fog lights.  That way I get DRL using bulbs that are easy to replace.
Logged

-2010 Acadia AWD SLT1
-Hardwired radar detector
-Backup camera override
-Two additional 12v outlets
-DRL redirect to fog lights
DVelasco68
Sr. Member
****
Offline Offline

Gender: Male
Posts: 281
Location: New Jersey
Joined: Dec 2012





Ignore
« Reply #44 on: December 31, 2012, 01:01:34 PM »

This would be the easiest and best solution...

If you do it, please post a write-up...

I've been considering just rerouting the DRL wire down to the fog lights.  That way I get DRL using bulbs that are easy to replace.
Logged

2013 Chevy Traverse LTZ
2007 Chevy Trailblazer SS AWD
2002 Chevy Venture WB Edition (Traded in)
2000 Chevy Malibu LS (Retired)
1987 Buick T-Type
capecodacadia
Acadia Freak
******
Offline Offline

Gender: Female
Posts: 2399
Location: Cape Cod, MA
Joined: Feb 2012





Ignore
« Reply #45 on: December 31, 2012, 04:09:06 PM »

Pulling the DRL fuse was one of the first things I did to Have Blue, the lights are too expensive and too
hard to get at.
Logged

2008 Acadia SLT2 (AWD) - Deep Blue Metallic with Titanium leather - HID, HUD, XM, OnStar, dual moon roofs, touch screen NAV w/rear view camera, entertainment package (DVD/Bose), remote start... but no darn ashtray! Build date 28Aug07
Eric E
Jr. Member
**
Offline Offline

Gender: Male
Posts: 62
Location: St. Louis, MO
Joined: Jan 2012




Ignore
« Reply #46 on: January 24, 2013, 02:38:23 PM »

This would be the easiest and best solution...

If you do it, please post a write-up...



Phewsh....I did it....only 27 laborious steps.  You may want to set a few hours aside for this one.  This will make only the fog lamps come on and not the other driving lights as happens when using the fog lamp button.

Materials:
1a) If you have a DRL fuse, 2" 18 AWG wire... no more, no less
1b) If you have a DRL2 fuse and RPO code TVD, 6" 18 AWG wire... no more, no less
2) Two 18 AWG wire taps

Tools:
1) Wire cutters (to cut the 2" or 6" wire)
2) A ruler for measuring the wire.
3) Something to attach the taps (the wire cutter may do)
4) Fingernails (to remove the plastic rivet thingies that hold panels on)

Step 1:
Cut 2"/6" 18 AWG wire.  Be careful!  Don't screw it up!  <--that's sarcasm

Step 2:
Remove kick panel from below the dash on the driver's side.

Step 3:

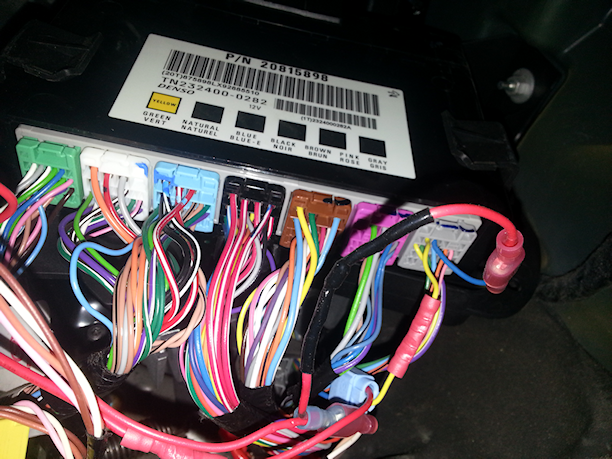

Find BCM. It looks like this:

The other stuff you see going on there is for my backup camera override.

Step 4:
Starting from the left side of the BCM, find connector four (X4) and pull it out (or leave it in).  I'll give you a hint; it's the fourth one over...and black.  It looks like this:


Step 5:
Find the Dark Green wire with a white stripe. This wire should be for pin 11 and controls the fog lamp relay. If you would like to verify, disconnect from the BCM then stick a wire in its hole in the harness and touch to ground to turn the lights on.  Now we need to find the wire that controls the DRL.  If you have a DRL2 fuse and RPO code TVD, you need to head over to BCM connector seven (X7) which is gray or grey depending on your county of origin.  You should find a Dark Blue wire at pin 8.  Everyone else needs to locate the Purple wire at pin 23 of X4.  The Dark Green and Purple wires can both be seen in the image back in Step 4.  The wire from X4 and X7 both control the DRL's by sending to ground so, just like with the fog lights, stick a wire in the hole and touch it to ground to verify the lights turn on.  If you had already pulled the DRL fuse, this test won't work but should if the DRL's were turned off manually.

Step 6:
Grab your wire taps of choice and, using your cut piece of wire, connect the fog lamp wire to the DRL wire.  The result should be similar to this:


Step 7 (conditional):
If you unplugged anything, plug it back in.

Step 8 (conditional):
Remove your DRL/DRL2 fuse if you haven't done so already.

Step 9:
Continue at Step 25.

Step 25 (may be swapped with Step 26):
Reinstall the kick panel.

Step 26 (may be swapped with Step 25):
Verify that enough ambient light exists to activate DRL's and then test your new setup.

Step 27:
Drink beer and beat your chest while grunting in a manly manner.


In summary...
1) Remove kick panel
2) Place a jumper at BCM across X4-11 and X4-23 or, if you have factory HID, X4-11 and X7-8
3) Replace kick panel
4) Pull appropriate DRL fuse
5) Drink beer and beat your chest while grunting in a manly manner


METHOD 2
I've learned that there may be apprehension with some folks when it comes to tampering with BCM wires so I've gone back to my schematics and figured out another way.  I have not tried it this way so be sure to verify everything with a meter and tracing.  This approach requires that the DRL fuses be left in place.

Materials:
1) Two 18 AWG wire taps
2) 2" 18 AWG wire
3) Electrical tape

Tools:
1) Wire cutters

Step 1:
Locate connector one (X1) at the fuse block under your hood.

Step 2:
Locate the Purple wire at position ten.  This should be the fog lamp wire.

Step 3:
If you have RPO codes TVD & Z88 (HID on a GMC) then locate the Dark Blue wire at position five otherwise, locate the Purple wire at position 20.  These should be for the DRLs.

Step 4:
Use the taps and piece of wire to splice the fog lamp wire to the DRL wire.  The only problem with this setup is that both fogs and headlights will turn on for the DRLs.  To fix this you will have to CUT the DRL wire to the headlights.

FUSE BLOCK -> DRL WIRE -> FOG LIGHT TAP -> DRL WIRE -> **CUT** -> HEADLIGHTS

Tape up the exposed ends and you should be good to go.
Logged

-2010 Acadia AWD SLT1
-Hardwired radar detector
-Backup camera override
-Two additional 12v outlets
-DRL redirect to fog lights
rbarrios
Acadia GOD!
********
Offline Offline

Posts: 6129
Joined: Oct 2009




Ignore
« Reply #47 on: January 24, 2013, 02:41:54 PM »

Pulling the DRL fuse was one of the first things I did to Have Blue, the lights are too expensive and too
hard to get at.

Yours has HID?
or regular halogen?
Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    27,000
2010 Traverse 3.6L-   84,000
2003 Trailblazer 4.2L-173,000
capecodacadia
Acadia Freak
******
Offline Offline

Gender: Female
Posts: 2399
Location: Cape Cod, MA
Joined: Feb 2012





Ignore
« Reply #48 on: January 24, 2013, 03:17:17 PM »

Sorry, this just seems appropriate... Did a bunch of shows with this band,
the guitar players were simply gorgeous, and nice guys too.


Kix - Blow My Fuse (HQ music video)



Logged

2008 Acadia SLT2 (AWD) - Deep Blue Metallic with Titanium leather - HID, HUD, XM, OnStar, dual moon roofs, touch screen NAV w/rear view camera, entertainment package (DVD/Bose), remote start... but no darn ashtray! Build date 28Aug07
FORUM GM
FORMER ACADIA COMMANDER; NOW IMPALA HERDER
Global Moderator
Acadia NIRVANA
*****
Offline Offline

Gender: Male
Posts: 15343
Joined: Dec 2008


I'M AN ACCOUNT TAKER AND A THREAD BREAKER



« Reply #49 on: January 24, 2013, 03:25:05 PM »

Cutting wires going to the BCM............. Undecided  for me not worth the risks
Logged

2014 Impala LS (non-eco)-Build date 12/13/2013  Mine 3/15/2014
"I don't care what you think about me; I don't think about you at all"
Eric E
Jr. Member
**
Offline Offline

Gender: Male
Posts: 62
Location: St. Louis, MO
Joined: Jan 2012




Ignore
« Reply #50 on: January 24, 2013, 03:54:32 PM »

Cutting wires going to the BCM............. Undecided  for me not worth the risks

What wires?  The DRL/fog light mod does not involve cutting any wires to the BCM.
Logged

-2010 Acadia AWD SLT1
-Hardwired radar detector
-Backup camera override
-Two additional 12v outlets
-DRL redirect to fog lights
FORUM GM
FORMER ACADIA COMMANDER; NOW IMPALA HERDER
Global Moderator
Acadia NIRVANA
*****
Offline Offline

Gender: Male
Posts: 15343
Joined: Dec 2008


I'M AN ACCOUNT TAKER AND A THREAD BREAKER



« Reply #51 on: January 24, 2013, 05:28:00 PM »

Symantics; pulled wires from and into the BCM..........
Logged

2014 Impala LS (non-eco)-Build date 12/13/2013  Mine 3/15/2014
"I don't care what you think about me; I don't think about you at all"
Eric E
Jr. Member
**
Offline Offline

Gender: Male
Posts: 62
Location: St. Louis, MO
Joined: Jan 2012




Ignore
« Reply #52 on: January 24, 2013, 06:03:10 PM »

Meh...I only spliced them together.  Plus I can see from the service manual what they do and how they work.  The BCM turns on these lights simply by closing a switch to connect the negative side of a relay.  In these new fangled vehicles,  just about every wire ends up back at one of the various control modules.  The camera mod was a little trickier dealing with the digital signal.
Logged

-2010 Acadia AWD SLT1
-Hardwired radar detector
-Backup camera override
-Two additional 12v outlets
-DRL redirect to fog lights
stoof
Full Member
***
Offline Offline

Gender: Male
Posts: 134
Location: Northern Indiana
Joined: May 2010





Ignore
« Reply #53 on: January 25, 2013, 01:40:39 PM »

So to clarify the OP, can someone recap what purpose exactly is the DRL 1 fuse and what all will happen if it is pulled; and separately what exactly is the purpose of the DRL 2 fuse and what will happen it only it is pulled... and what about pulling both?
Logged

(her) 2008 3SA 80U ABC C67 PCM PDD PZ3 V92 (A Red Jewel SLE with some nice options)
(my) 2012 Jetta Sportwagen TDI
Eric E
Jr. Member
**
Offline Offline

Gender: Male
Posts: 62
Location: St. Louis, MO
Joined: Jan 2012




Ignore
« Reply #54 on: January 28, 2013, 10:40:51 AM »

So to clarify the OP, can someone recap what purpose exactly is the DRL 1 fuse and what all will happen if it is pulled; and separately what exactly is the purpose of the DRL 2 fuse and what will happen it only it is pulled... and what about pulling both?

You have the DRL2 fuse only if you have factory HID.  Without HID, the DRL fuse is for both low beams to be run as the DRL.  With HID, the high beams are used as the DRL with individual fuses.  I believe this is only an Acadia thing.
Logged

-2010 Acadia AWD SLT1
-Hardwired radar detector
-Backup camera override
-Two additional 12v outlets
-DRL redirect to fog lights
stoof
Full Member
***
Offline Offline

Gender: Male
Posts: 134
Location: Northern Indiana
Joined: May 2010





Ignore
« Reply #55 on: January 29, 2013, 10:12:06 AM »

That makes sense. sorry if I missed that info in other replies further up.
Logged

(her) 2008 3SA 80U ABC C67 PCM PDD PZ3 V92 (A Red Jewel SLE with some nice options)
(my) 2012 Jetta Sportwagen TDI
rbarrios
Acadia GOD!
********
Offline Offline

Posts: 6129
Joined: Oct 2009




Ignore
« Reply #56 on: January 29, 2013, 11:55:11 AM »

You have the DRL2 fuse only if you have factory HID.  Without HID, the DRL fuse is for both low beams to be run as the DRL.  With HID, the high beams are used as the DRL with individual fuses.  I believe this is only an Acadia thing.


like he said....

look at the diagram below.
Note the .   and .. on top of the fuse box--- and next to the fuse spots

Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    27,000
2010 Traverse 3.6L-   84,000
2003 Trailblazer 4.2L-173,000
@TheNSyed
Cogito Ergo Sum
New Member
*
Offline Offline

Gender: Male
Posts: 45
Joined: Jan 2013


Proud to be an Engineer




Ignore
« Reply #57 on: April 28, 2013, 09:13:31 AM »

Hi,
What is the rating of the DRL fuse(s). I want to re-enable my DRL's. They were pulled out.

Regards.
Logged

2011| GMC Acadia SLT-2 -V6 (All Available Factory Options) [Diamond Tricoat]
2008| Suzuki Swift VXi -V4 [Smoke Gray]
2008| Pulsar 220 DTS-Fi -V2 [Titanium Silver]
2003| Jeep Grand Cherokee Limited -V8 [Metallic Black]
lamping.ap
Sr. Member
****
Offline Offline

Gender: Male
Posts: 450
Location: Cinci OH
Joined: Jul 2012




Ignore
« Reply #58 on: April 28, 2013, 11:18:44 AM »

Hi,
What is the rating of the DRL fuse(s). I want to re-enable my DRL's. They were pulled out.

Regards.

10A or 15A depends if you have HID. Read the post above yours.
Logged

2012 Acadia SLE w/ AWD, tow
@TheNSyed
Cogito Ergo Sum
New Member
*
Offline Offline

Gender: Male
Posts: 45
Joined: Jan 2013


Proud to be an Engineer




Ignore
« Reply #59 on: April 28, 2013, 12:43:23 PM »

10A or 15A depends if you have HID. Read the post above yours.

Thanks  thumbs up
Logged

2011| GMC Acadia SLT-2 -V6 (All Available Factory Options) [Diamond Tricoat]
2008| Suzuki Swift VXi -V4 [Smoke Gray]
2008| Pulsar 220 DTS-Fi -V2 [Titanium Silver]
2003| Jeep Grand Cherokee Limited -V8 [Metallic Black]
Pages: 1 2 [3] 4   Go Up   [ Home | Unread Posts | Unread Replies ]
  Print

Jump to:
Custom Auto Accessories

Powered by MySQL Powered by PHP Powered by SMF 1.1.15 | SMF © 2011, Simple Machines | Sitemap
©2014 acadiaforum.net All Rights Reserved.
All trademarks referenced herein are property of their respective owners.
Valid XHTML 1.0! Valid CSS!
